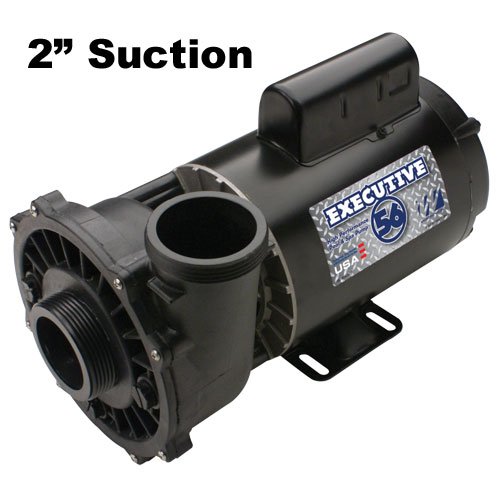

Waterway Executive 56 Frame, 2 Inch Suction
2 Inch Suction (see product details), 2-Speed, 1725/3450 RPM, 56 Frame
(Also replaces Beachcomber Massage Master XLT)
2 Inch Suction (see detailed image), Waterway Executive 56 Frame Pump available in these models:
| Part Number | Horse Power | Voltage | Amp Draw (Low / High Speed) |
| 3720821-1D | 2 HP | 230 Volts | 3.0 / 8.0 Amps |
| 3721221-1D | 3 HP | 230 Volts | 3.4 / 10.0 Amps |
| 3721621-1D | 4 HP | 230 Volts | 4.4 / 12.0 Amps |
| 3722021-1D | 5 HP | 230 Volts | 4.8 / 16.4 Amps |
- Available here with a 2.0" suction (3" Outside Diameter on threads),
but can also be ordered with a 2.5" suction here (measures 3-5/8" O.D. on threads). - Executive wet end designed specifically for 56 frame motors to run cooler, have more power and use less energy.
- Two double shielded ball bearings with moisture resistant grease, for quieter operation and longer life.
- Two speed motors have four sets of insulated windings for increased efficiency.
- 56 frame motor for added strength, cooler operating temperature and longer motor life.
- Split capacitor (start and run) for less energy consumption.
- Thermally protected to extend life expectancy of motor.
- Wet end can easily be rotated for Left or Right Side Discharge, or can be used as shipped (with discharge pointing up).
- Large 7.5 inch diameter wet end for higher head pressure.
- This pump also replaces Beachcomber Massage Master XLT.
Pump cord and pump unions are not included.
