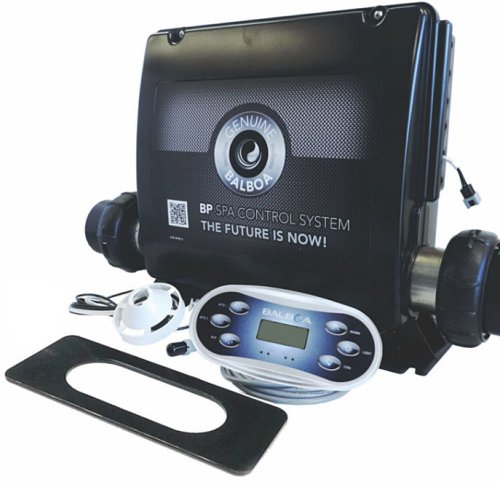

Balboa BP7 Control System Bundle

Balboa BP Kits include the control system with heater, topside control, Amp 4-prong style equipment cords, light wire, light bulb and light harness.

• Main Pump Circuit (1 or 2-Speed) - 110V or 220V 12A Max*
• Pump 2 / Blower Circuit (1 or 2-Speed) - 110V or 220V 12A Max*
• Pump 3 / Blower Circuit (1 or 2-Speed) - 110V or 220V 12A Max*
• Ozonator Circuit - 110V or 220V (Must match voltage of circulation pump circuit below. If you do not have a small circulation pump, you have the option to set this circuit to either voltage. If you have a small circulation pump, you must use an ozonator with the same voltage as your circulation pump.)
• Light Circuit - 12 Volts
• **Circulation Pump Circuit - 110V or 220V. Circ and Ozone must be same voltage
• Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
• Includes one 2-speed cord & two 1-speed cords.
• 4.0 kW or 5.5 kW, 240V Flo-Thru heater with M7 technology
• Program Setting from Compatible Balboa Topside Panel
• Wifi Enabled (Balboa Wifi Module Sold Separately)
• M8 Pump Saver Technology
• Stainless steel heater housing
• No Pressure Switch. Heater can be installed on suction or discharge side of pump
• Quick Disconnect Heater Cable
• Freeze protection, High-limit protection, Filtration mode, Economy Mode
• Topside measures 7.1" X 3.5"

**Most spas don't have a small circulation pump, instead, the main pump runs on low speed to heat and filter the water during set filtration cycles. If you are using a small circulation pump, the flow rate must be at least 25 gallons per minute. In other words, the circulation pump must be similar to a Waterway Iron Might or Aquaflo Circmaster Pump and require a minimum 1.5" size plumbing. Pumps like the Waterway Tiny Might or Laing E10 Circulation Pump are too small and will not work with this control system.
