Aqua-Flo Circmaster CMHP (Side Discharge) Pump

Available in 115 Volt or 230 Volt:

02093000-2010 - 115 Volt, 1/12 HP Circulation Pump, 1.3 Amps, 60 Hz, 1725 RPM.

Previous 115V part numbers: 02093637-2, 02093460-2, 02093644, K55MYGJN-8255, 321810.

02093001-2010 - 230 Volt, 1/12 HP Circulation Pump, 0.63 Amps, 50/60 Hz, 1725 RPM (1425 RPM on 50 Hz).

Previous 230V part numbers: K55MYGRD-8367, 02408492-2, 02093638, 6500-907 (Jacuzzi/Sundance).

This pump also replaces the Beachcomber Hush Pump. Confirm the voltage of your motor on the name plate.

1.5" Thread Connections (measure 2-5/16" O.D. on threads). Includes 2 pump unions (uses 400-4060).

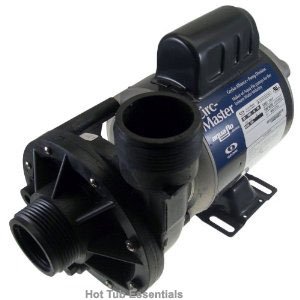

Be careful, there are 2 different versions of the Circmaster Pump! The pump on this page is the CMHP, which has a side discharge (pictured with the discharge pointing up). The wetend can be turned 90 degrees in either direction, but on the side discharge version, it will always be off-set to one side of the wetend.

The Circmaster is also available in a center discharge version. In the picture below, notice how the discharge is in the center of the top. The wetend can be turned 90 degrees in either direction, but on the center discharge version, it will always be in the center of one side of the wetend. The Circmaster CMCP (center discharge) is on our site here.
