Universal Heater Assembly, 4 kW / 5.5 kW
Replaces most 'flow through' style heaters that use a pressure switch.
- Includes heater element. Choice of 4 kW or 5.5 kW on 240V
(Can also be used on 120V. Rated 1 kW or 1.4 kW if wired to 120V). - 15" heater manifold (measured from stainless steel flange to flange).
The Universal Heater Housing makes it easy to replace almost any 'flow thru' heater assembly with a pressure switch!
Includes heater element. Two ratings of heater elements are available and both can be wired to 240V or 120V:
P/N: 27-J0413-5S-K - 4.0 kW on 240V / 1 kW on 120V (previous part numbers: C2400-5000-1, 48-1555-RP)
P/N: 27-J0413-7S-K - 5.5 kW on 240V / 1.4 kW on 120V (previous part numbers: C2550-5000-1, 48-1540-RP)
(The 4 kW and 5.5 kW are physically the same size. Only the kW ratings are different.)
15" heater manifold (measured from stainless steel flange to flange).
5 options for location of pressure switch (includes threaded plugs).
Moveable bands allow movement of thermal well (for sensors) and studs to connect to pack box.

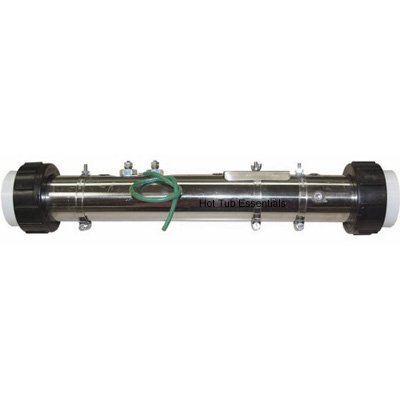

Includes black split nut unions and white PVC unions (as pictured).
- 2" white PVC slip connections accept 2" pipe (2-3/8" O.D.).
- 2" threaded connections measure 3" O.D. on threads.
