Balboa BP Spa Control System Bundle
Balboa BP System and Topside Control

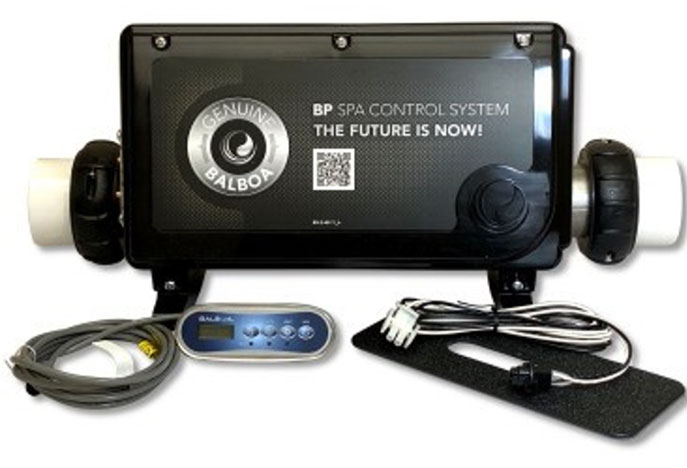

Balboa BP Kits include the control system with heater, topside control, Amp 4-prong style equipment cords, light wire, light bulb and light harness .
- Program Setting from Compatible Balboa Topside Panel
- Wifi Enabled (Balboa Wifi Module Sold Separately)
- M8 Pump Saver Technology (Works with TP400, TP600, TP800 and the SpaTouch™ 1 & 2)

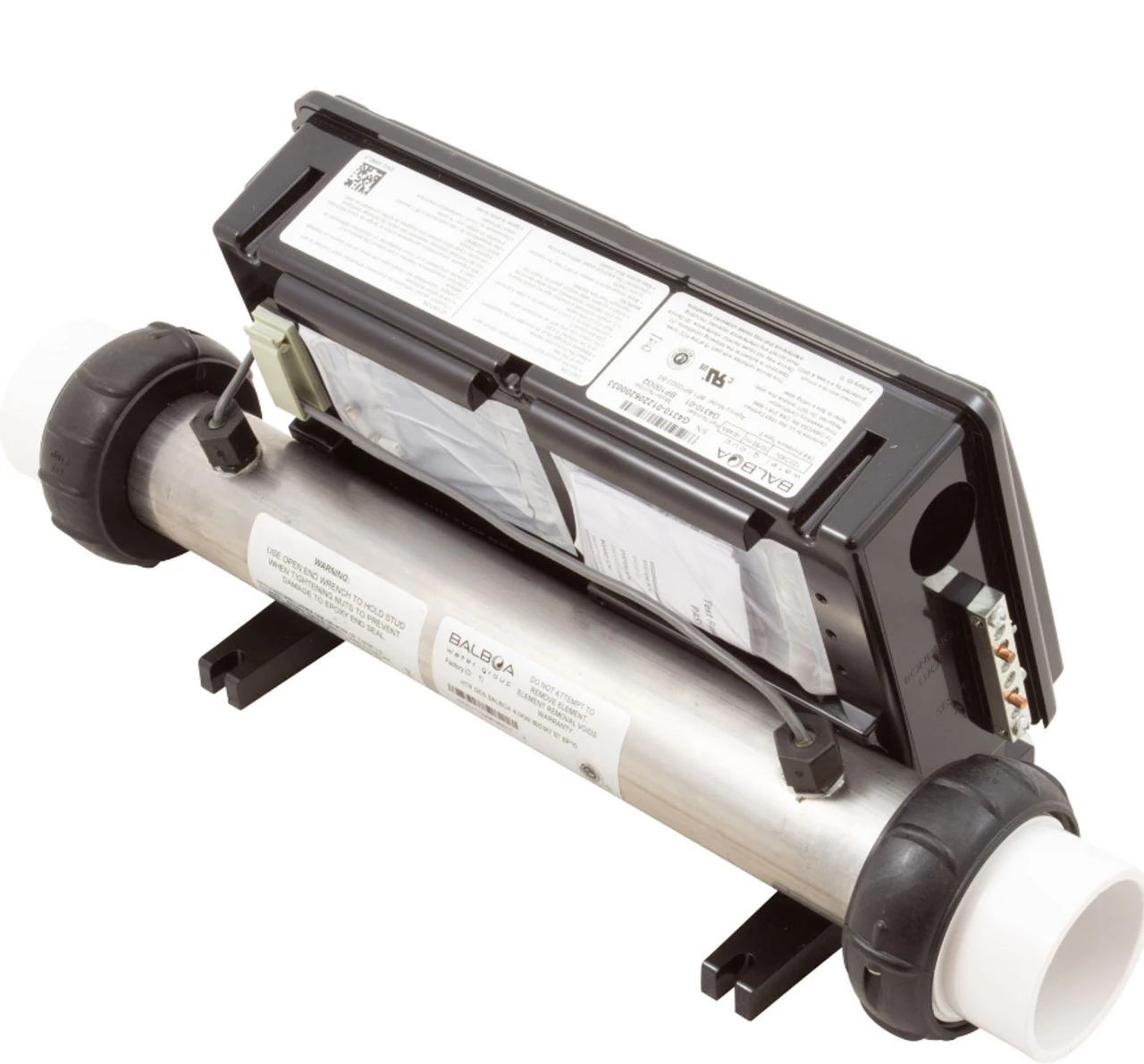

- 4.0KW, 240V Flo-Thru Incoloy heater with M7 technology
- Stainless steel heater housing
- No Pressure Switch. Heater can be installed on suction or discharge side of pump
- Quick Disconnect Heater Cable
- Freeze protection, High-limit protection, Filtration mode, Economy Mode
These control systems can be wired to 220 Volts or 110 Volts. If wired to 220 Volts, each of the component circuits can be either 220V or 110V. 220V requires 4 wires, a Neutral is required.
Selection of BP System:
Single Pump System with TP200T Topside Control: operates a 2-spd Pump & optional Circulation Pump (Pump 1 becomes a 1-spd circuit when circ pump used).
- Main Pump Circuit (2-Speed) - 110V or 220V 12A Max*
- Ozonator Circuit - 110V or 220V (Must match voltage of circulation pump circuit below. If you do not have a small circulation pump, you have the option to set this circuit to either voltage. If you have a small circulation pump, you must use an ozonator with the same voltage as your circulation pump.)
- Light Circuit - 12 Volts
- **Circulation Pump Circuit - 110V or 220V.Circ and Ozone must be same voltage
- Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
- Includes one 2-speed cord
- Topside measures 4-3/8” x 1-1/2”
Dual Pump System with TP600 Topside Control: operates a 2-spd Pump, Secondary 1 or 2-spd Pump/Blower & optional Circulation Pump
- Main Pump Circuit (2-Speed) - 110V or 220V 12A Max*
- Pump 2 / Blower Circuit (1 or 2-Speed) - 110V or 220V 12A Max*
- Ozonator Circuit - 110V or 220V (Must match voltage of circulation pump circuit below. If you do not have a small circulation pump, you have the option to set this circuit to either voltage. If you have a small circulation pump, you must use an ozonator with the same voltage as your circulation pump.)
- Light Circuit - 12 Volts
- **Circulation Pump Circuit - 110V or 220V.Circ and Ozone must be same voltage
- Audio/Video circuit, 110/220V, 2A Max (Constant Circuit)
- Includes one 2-speed cord & two 1-speed cords.
- Topside measures 7.1" X 3.5"
**Most spas don't have a small circulation pump, instead, the main pump runs on low speed to heat and filter the water during set filtration cycles. If you are using a small circulation pump, the flow rate must be at least 25 gallons per minute. In other words, the circulation pump must be similar to a Waterway Iron Might or Aquaflo Circmaster Pump and require a minimum 1.5" size plumbing. Pumps like the Waterway Tiny Might or Laing E10 Circulation Pump are too small and will not work with this control system.
Includes an adapter plate for the topside control. Use if you previously had a larger topside and you need to cover a larger hole. The adapter plate has double-sided sticky tape on back.
