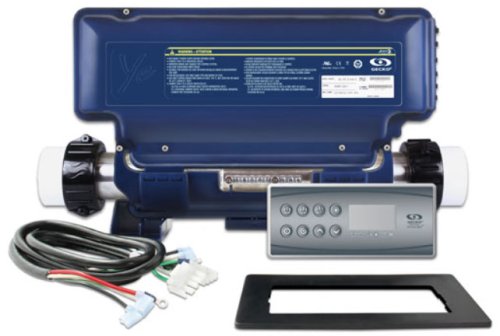

Gecko Y Series (YE-5) Retrofit Kit Bundle
Next image
Zoom image

Gecko Y Series (YE-5) Retrofit Kit Bundle


Not rated yet

Your best deal for a Gecko YE-5 Control System with component cords and topside control keypad.

Choose from the in.k200, in.k300 or in.k450 topside & add optional wifi remote access.

  • SKU: Gecko YE-5 Bundle
  • See Best Price in Cart
    MAP: Minimum Advertised Pricing MAP Price means a product can not be advertised at a lower price as per the manufacturer, but we may sell for less. Once a MAP product is added to your cart, you will see our price in your cart. Our price is likely less than the MAP.
Qty:

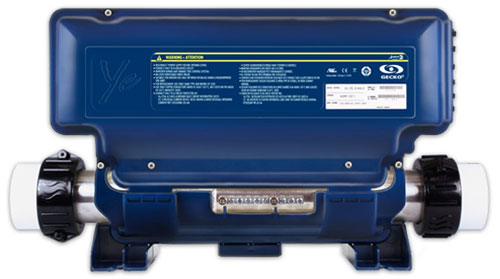

IN.YE-5 Control System Retrofit Kit Bundle

Choose from the in.k200, in.k300 or in.k450 topside & add optional wifi remote access.

  • Can be wired to 220V or 110V. If the main power is 220V, then all components can be configured for 110V or 220V.
  • Includes Cord Kit (two 4 wire cords, two 3 wire cords and a 12 V AC light cord - see below for more details).
  • The heater is 5.5 kW or 4 kW when wired to 220V or 1.375 / 1 kW when hooked up to 110V.
  • The system features a solid-state water flow detection system, which eliminates the pressure switch found in traditional spa packs.
  • Preloaded configuration settings allow for fast and easy programming.
  • Compatible with the Gecko WiFi module. The WiFi module can be added at any time in the future, or at a reduced price with the bundle.
  • Dimensions of control system: 19.6" x 10.75" x 2.87", heater is 15" wide with standard 2" connections

The YE-5 has 5 configurable relays & this will determine the amount of equipment you can run. Each 2-speed pump will use 2 relays, while other 1-speed pumps, blowers and ozonators will use 1 relay each. If you are running a fibre-optic lighting system, this will use 2 relays. A stereo or television can also be powered and will not use one of the relays.

You have the option of running up to (2) 2-speed pumps. Most hot tubs will have at least (1) 2-speed pump, and low speed is used to heat and filter your hot tub. If your tub has a **circulation pump (see disclaimer at bottom of page) for heating & filtering, you have the option to configure all pumps as 1-speed.

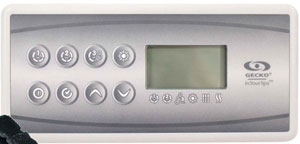

There are 3 topside controls to choose from (see detailed images above).

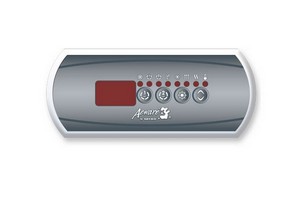

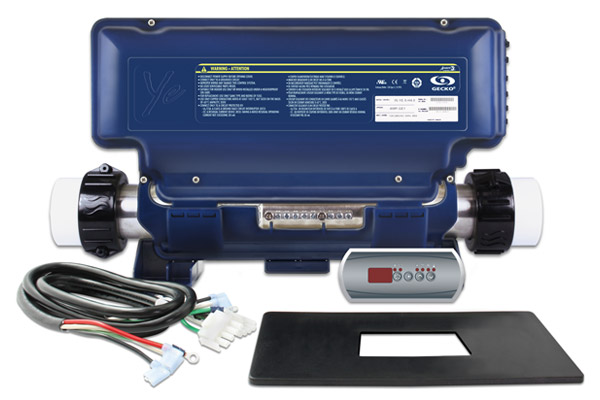

in.k200 topside keypad - 4-3/4" X 2" (also includes larger adapter plate to use if you need to cover a larger hole)
4 wire cords (1 included with this topside): 2-speed pumps require a 4-wire cord.
3 wire cords (2 included with this topside): 1-speed pumps, blowers, ozonators, audio, video use a 3 wire cord.

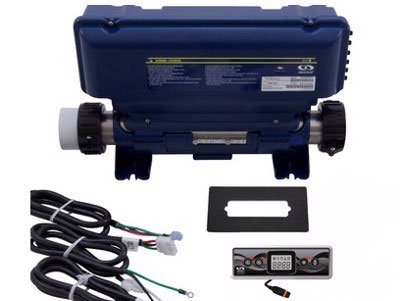

in.k300 topside keypad - 6-1/4" X 2-1/4" (also includes larger adapter plate to use if you need to cover a larger hole)
4 wire cords (1 included with this topside): 2-speed pumps require a 4-wire cord.
3 wire cords (2 included with this topside): 1-speed pumps, blowers, ozonators, audio, video use a 3 wire cord.

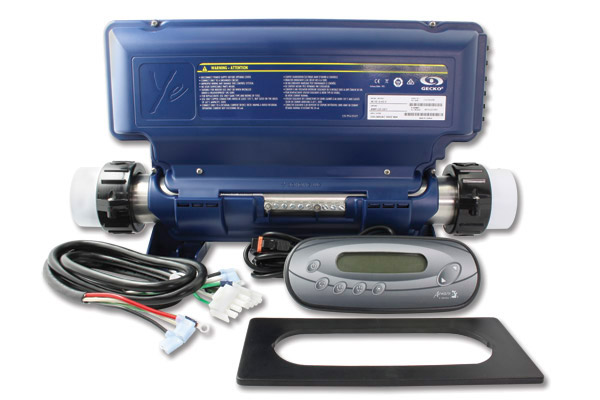

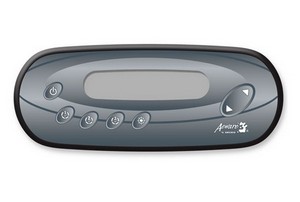

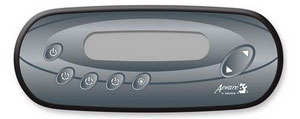

in.k450 topside keypad - 7-1/4" X 3" (also includes larger adapter plate to use if you need to cover a larger hole)
4 wire cords (2 included with this topside): 2-speed pumps & fiber optic lighting systems require a 4-wire cord.
3 wire cords (2 included with this topside): 1-speed pumps, blowers, ozonators, audio, video use a 3 wire cord.

Note: If you are adding the IN.TOUCH 2 WiFi Interface Module, the in.k300 or in.k450 is strongly recommended. These topsides have a clock feature and the Wifi software will allow you to select filter and heating modes during exact times of the day. The in.k450 is required for fibre-optic lighting systems.


Amp cords used on Gecko Y-Series


Cords are Amp 4-Prong style that connect directly to the circuit board.



Gecko Y-Series Light Cord
The Light Cable (included in bundle), is a unique Gecko power cord that plugs into the board for a regular 12V spa light or LED light.


**Use of circulation pump on the Y-Series: Most spas don't have a small circulation pump, instead, the main pump runs on low speed to heat and filter the water during set filtration cycles. If you are using a small circulation pump, the flow rate must be at least 20 gallons per minute. In other words, the circulation pump must be similar to a Waterway Iron Might or Aquaflo Circmaster Pump and require a minimum 1.5" size plumbing. Pumps like the Waterway Tiny Might or Laing E10 Circulation Pump are too small and will not work with this control system.

If you have an circulation pump, we recommend the 4 kW model because Gecko makes the initial set-up much easier on the 4 kW. Simply select one of the pre-set configurations for a circ pump, in the Quick Start Guide. Gecko does not have a pre-set configuration for a circ pump on the 5.5 kW model, instead you have to go into Field Programming (detailed instructions are in the Gecko Y-Series Techbook). In short, you choose a pre-configuration from the 5.5 kW Quick Start Guide that operates the equipment you have and change the ozone field to a circ pump. Hold the light key down for 30 seconds to go into Field Programming. You then change the ozonator to CP which stands for Circ Pump (using the up and down temp buttons). Then hit the light key until you get to HP (stands for heater pump) and change from 1 to 0 for a circ pump. Then hit the light key until you exit. You then plug your circ pump into where your configuration tells you to plug in ozone. If you have an ozonator, you can plug it in somewhere else.
